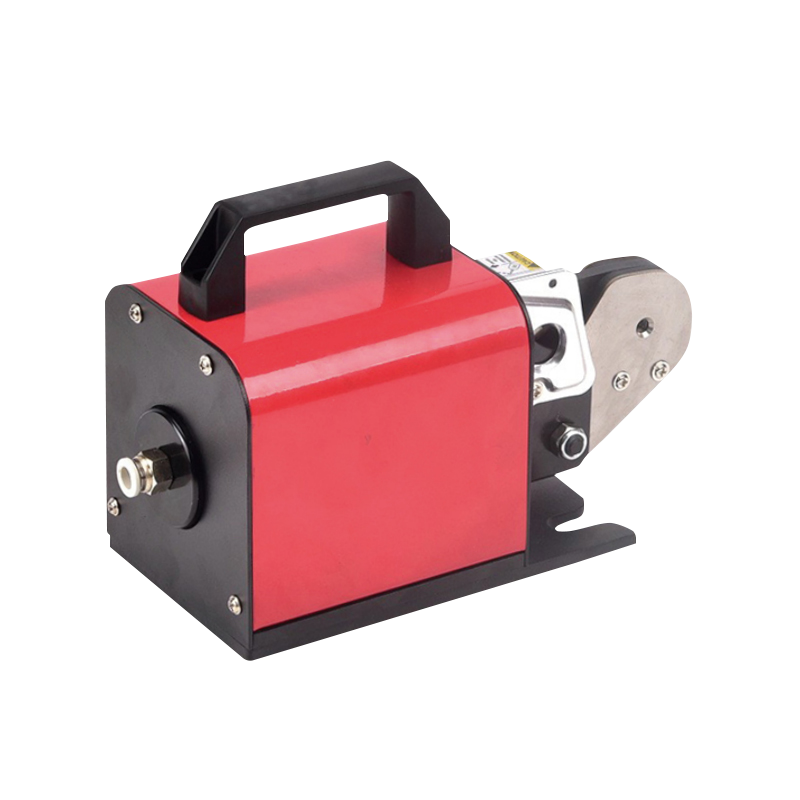

What is a Pneumatic Terminal Crimp Machine?
China Pneumatic Terminal Strip And Crimp Machine Manufacturer
In the world of electrical wiring and cable assembly, efficiency and precision are crucial. A Pneumatic Terminal Crimp Machine is a specialized device designed to attach terminals to wires using compressed air. It provides a consistent and reliable crimping force, making it a preferred choice for industries that require large-scale and high-quality crimping operations. Compared to manual and electric crimping tools, a Pneumatic Terminal Crimp Machine offers improved speed, consistency, and reduced operator fatigue.
This article explores the basic concept, working principle, and main components of a Pneumatic Terminal Crimp Machine, along with a comparison to manual and electric crimping machines.
Basic Concept of a Pneumatic Terminal Crimp Machine
A Pneumatic Terminal Crimp Machine is a crimping device powered by compressed air. It is commonly used in industries such as automotive manufacturing, electronics, and telecommunications, where precise and secure terminal connections are required. The primary function of a Pneumatic Terminal Crimp Machine is to apply uniform pressure to attach a metal terminal securely onto the stripped end of a wire, ensuring a strong and reliable electrical connection.
Unlike manual or electric crimping tools, a Pneumatic Terminal Crimp Machine automates the crimping process, reducing human error and increasing efficiency. This makes it ideal for high-volume production lines where speed and accuracy are essential.
Working Principle of a Pneumatic Terminal Crimp Machine
The operation of a Pneumatic Terminal Crimp Machine is based on the controlled use of compressed air to generate force for crimping. The process involves several key steps:
Wire Preparation
The operator strips the insulation from the wire to expose the conductive core.
The appropriate terminal is selected based on wire size and application requirements.
Terminal Placement
The stripped wire is inserted into the terminal.
The terminal is positioned within the crimping die of the Pneumatic Terminal Crimp Machine.
Compressed Air Activation
When the foot pedal or hand switch is pressed, the machine releases compressed air, activating the crimping mechanism.
The crimping dies close around the terminal, applying uniform pressure to form a secure bond between the wire and the terminal.
Crimping Completion
The Pneumatic Terminal Crimp Machine retracts the dies, releasing the crimped terminal.
The operator moves to the next wire, allowing for continuous production.
This automated crimping method ensures consistency in each crimp, reducing the risk of loose or poorly formed connections.
Main Components of a Pneumatic Terminal Crimp Machine
A Pneumatic Terminal Crimp Machine consists of several essential components that work together to perform efficient crimping operations:
1. Air Compressor System
The core of a Pneumatic Terminal Crimp Machine is its air-driven mechanism.
An external air compressor supplies pressurized air, which powers the crimping action.
Proper air pressure regulation is essential to maintain consistent crimping quality.
2. Crimping Dies
The crimping dies are interchangeable tools that shape and press the terminal onto the wire.
Different die sets are available for various terminal types and wire sizes.
The quality of the crimping dies determines the precision and durability of the crimps.
3. Control System
The control system includes a foot pedal, hand switch, or automatic trigger that activates the crimping process.
Some advanced Pneumatic Terminal Crimp Machines feature programmable settings for different crimping parameters.
4. Safety Mechanisms
Many Pneumatic Terminal Crimp Machines are equipped with safety guards to prevent accidental injuries.
Pressure adjustment controls ensure that excessive force is not applied, which could damage terminals or wires.
Comparison: Pneumatic vs. Manual vs. Electric Crimping Machines
When choosing a crimping machine, it is important to understand how a Pneumatic Terminal Crimp Machine compares to manual and electric alternatives.
1. Pneumatic vs. Manual Crimping Machines
Feature | Pneumatic Terminal Crimp Machine | Manual Crimping Tool |
Power Source | Compressed Air | Hand-Operated |
Speed | High | Slow |
Consistency | Excellent | Variable (depends on user) |
Operator Fatigue | Low | High |
Use Case | High-volume production | Low-volume or occasional use |
A manual crimping tool is suitable for small-scale applications but can to inconsistencies and operator fatigue in large-scale production. A Pneumatic Terminal Crimp Machine, on the other hand, delivers faster and more uniform crimps with minimal effort.
2. Pneumatic vs. Electric Crimping Machines
Feature | Pneumatic Terminal Crimp Machine | Electric Crimping Machine |
Power Source | Compressed Air | / |
Speed | High | Moderate to High |
Maintenance | Low (requires air filter changes) | Moderate (motor maintenance) |
Cost | Moderate | Higher |
Safety | High (non-electric) | Requires electrical safety precautions |
While both options are efficient, a Pneumatic Terminal Crimp Machine is often preferred for industrial settings due to its non-electric operation, making it safer in environments where electrical hazards need to be minimized.
Why Choose a Pneumatic Terminal Crimp Machine?
For industries that require precise, high-speed crimping, a Pneumatic Terminal Crimp Machine offers multiple advantages:
Speed and Efficiency – The use of compressed air allows for rapid crimping cycles, increasing productivity.
Consistency and Precision – Unlike manual crimping, which depends on user skill, a Pneumatic Terminal Crimp Machine delivers uniform crimps every time.
Reduced Operator Fatigue – Since the machine handles of the force, workers can operate for extended periods without strain.
Versatility – Various crimping dies make it suitable for different terminal types and wire sizes.
Improved Safety – The non-electric operation minimizes risks associated with electrical hazards.
A Pneumatic Terminal Crimp Machine is an essential tool for industries that require efficient, precise, and high-volume terminal crimping. By utilizing compressed air, it provides a consistent and reliable crimping force, outperforming manual crimping tools in speed and reducing worker fatigue. Compared to electric crimping machines, a Pneumatic Terminal Crimp Machine offers a safer and more cost-effective alternative for large-scale production.
As automation continues to shape modern manufacturing, the Pneumatic Terminal Crimp Machine remains a valuable investment for companies seeking to improve efficiency, maintain quality, and enhance workplace safety in terminal crimping operations.
