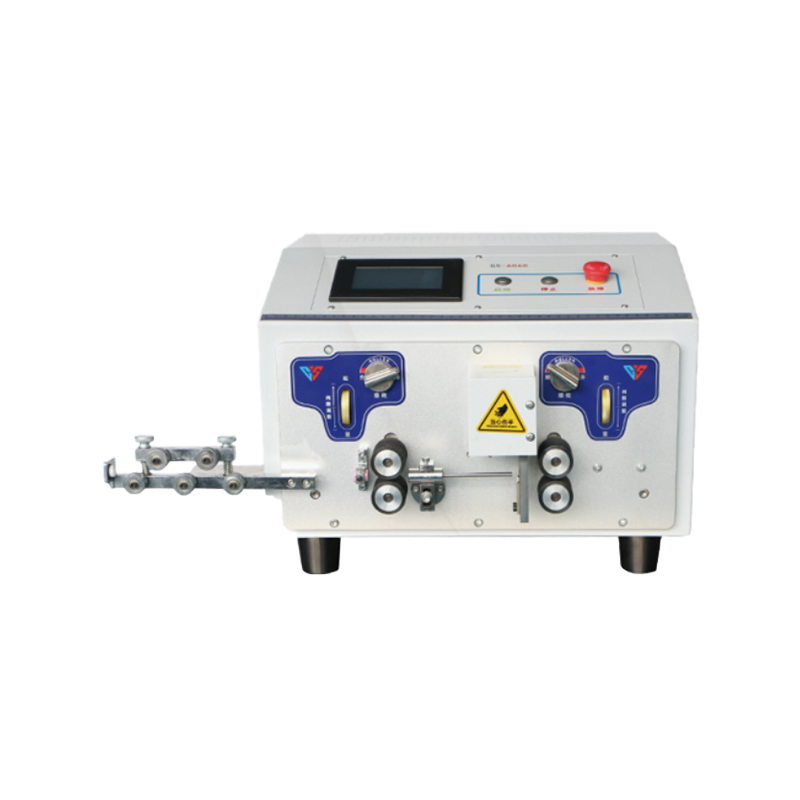

Model | WD-606(High power) |
Display mode | 4.3-inch full-color touch screen |
Function | Wires, cables, fully automatic cutting and peeling |
Wire materials | Wires, cables, PVC,etc |
Stripping range | 1-6²(BV6²) |
Cut length | 1mm-99999.99mm |
Cutting tolerance | Within 0.002*L(L is cutting length) |
Stripping length | Front end fully detached: 1- 30mm |
Rear end fully detached: 1- 15mm | |
Middle peeling sections | 16 Customized |
Cutter material | Superior quality imported top-speed steel |
Output rate (time/hour) |
2000-5000 PCS/H (Depend on the length and size of the wire) |
Driving mode | 4WD(Noiseless hybrid stepper) motor |
Volume | 450*430*340mm |
Weight | 28kg |
